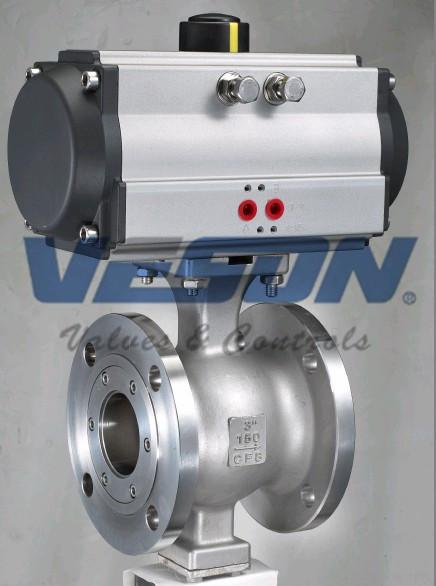

Actuator Mounted To A 3” V-Port 150# Flanged Ball Valve Via Stainless Steel Bracket And Coupling
V port ball valve is quarter turn valve, primarily intended as a control valve, but it can also be used for shut off service .V segment ball valves is in V-notch design with strong cutting force and self-cleaning, especially suitable for control of medium containing fiber and tiny solids, therefore, it is widely used in the Auto-control systems in industries such as pulp and paper, chemical industry, petroleum, chemical fiber, power, metallurgy, pharmacy, environmental protection.
Features
1. Single-piece valve body
V port ball valve has single-piece bodies, which prevents leaks caused by separate flanges.
2. Bearings
V-ball adapts the upper and lower stem to fixed by bearings. Bearings are by the composite material, it has good lubricating, strong abrasion performance, high mechanical stability, small torque for opening, to ensure the valve with excellent sensitivity and sensor speed.
3. Movable seat
V-ball valve adapts the Belleville washer or column spring-loaded movable seat structure, , the seat can make the best contact with the disc by the springs’return force and has good sealing performance.PTFE seat and metal seat are available for different application requirements.
4. V segment ball
Specially designed V-segment ball provides equal percentage flow characteristic with high precision control performance as well as strong cutting force and self-cleaning function.
5. Spline connection between shaft and ball(for 10" and above)
Ball and shaft are connected by spline . It provides a seamless match ball with shaft is prevented with enhanced control precision.
6. low capacity
For super-low flow applications, low capacity valve is available with DN25 for precise control.
7. ISO5211 direct mounting pad
V port ball valve built with ISO5211 direct mounting pad.It conveniently connects with various kinds of drive, such as the handle, worm gear, pneumatic actuators, electric actuators, hydraulic actuators etc.
8. Full Silica sol Investment Casting body
The V-port ball valves' body is Full Silica sol Investment Casting, so it has very smooth surface, it also more beautiful.
9. End type: Flanged end and wafer end
